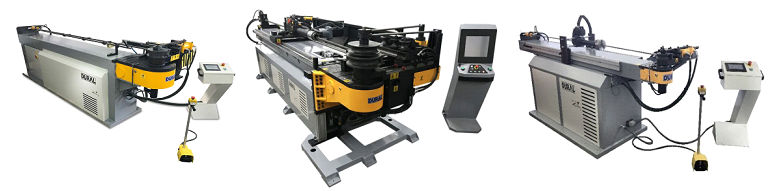

Premium Semi-Automatic NC/SR tube bending machines

Premium Deluxe Best in Class Semi-Automatic NC/SR Tube Bending Machines. Designed and built as a low investment alternative to CNC to provide High Performance, Profitable Solutions.

Complete with a user-friendly touch screen two axes HMI Numerical Control mixed with mechanical stops. Come complete with the features required to manufacture quality, accurate and repeatable 3D tubular parts from this quality semi-automatic production machine,

Family of five machines capable of bending tube sizes:

  • 32mm/od x 2mm/wt
  • 51mm/od x 3mm/wt
  • 60mm/od x 3mm/wt
  • 76mm/od x 4mm/wt
  • 90mm/od x 4mm/wt

Standard features include:

  • Numerical control to adjust angle of bend in increments of 0.1°
  • Plane of Bend selector (POB) adjustable in increments of 0.1°
  • Distance between bends (DBB) adjustable via sequential mechanical stops along a graduation scale covering the length of the machine.
  • Pressure die assist
  • Mandrel extraction system
  • Mandrel lubrication system
  • Wiper-die bracket
  • Full two years parts and labour warranty
  • Installation, commissioning, and full operator training can be arranged
  • A full specification and quotation up on request.

To summaries:
* Low-cost investment
* Includes: UK installation, commissioning, and operator training
* Complete with on-going service, support and back-up.

Got questions – Book a live or remote demonstration – or need assistance?

Please feel free to let us know. We’re a friendly bunch (after coffee) and here to: Help you get it right – It’s what we do!Quotation available up on request

Your local contact is:

John Owen
Fluent in creative tube bending

Direct: +44(0)7776 213919
Sales office: +44(0)1782 953096
