DMH-38-CNC-1s
Contact us for price
Plymouth, United Kingdom
Description

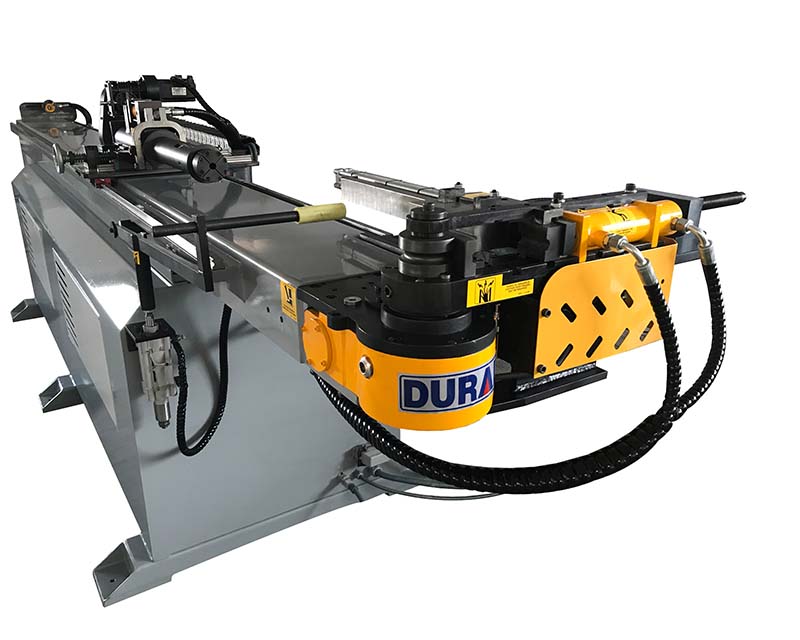

Dural CNC Budget Priced Tube & Pipe Bending Machines
Great value machines. Designed and built to work harder, faster, and longer to boost your production and profits providing High Performance, Profitable Solutions, at a very affordable investment.
Complete with the features required to manufacture quality, accurate and repeatable 3D tubular parts from this quality production machine.
Options include: single stack - Multi-stack - Variable radius (roll bending) and Automatic Tube Punching to name just a few...
Family of six machines, capable of bending tube sizes:
- 32mm/od x 2mm/wt
- 38mm/od x 2mm/wt
- 51mm/od x 3mm/wt
- 60mm/od x 3mm/wt
- 76mm/od x 4mm/wt
- 90mm/od x 4mm/wt
- High speed, High Tech’ CNC user-friendly touch screen Controls.
- Simulation function – Check your parts before going into full production mode.
- Network ready – Quick and easy to recall programmes from machines memory and or from your network.
- Quick and easy to link to most CAD systems to transfer 3D programmes direct to your new machines HMI.
- Enter cartesian coordinates XYZ and automatically convert to YBC machine language.
- Pressure die assist.
- Mandrel extraction system
- Mandrel lubrication system
- Wiper die bracket
- Full two year parts and labour warranty
- Installation, commissioning and full operator training can be arranged
- A full specification and quotation up on request - Just let me know the the machine size that will best fit your project needs.
Specifications
Manufacturer | Dural |
Model | Budget priced CNC tube bending machines |
Condition | New |
