Dural DMH-51-NC/SR - Semi-Automatic

Images
Videos
Dural DMH-51-NC/SR - Semi-Automatic
Contact us for price
Plymouth, United Kingdom
Description

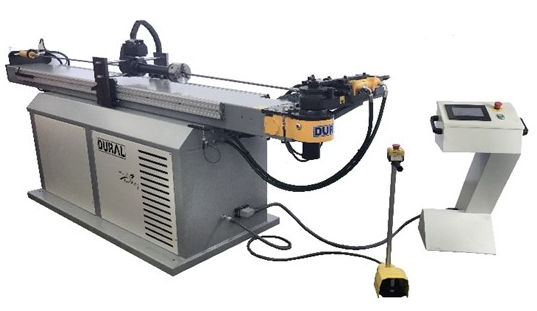

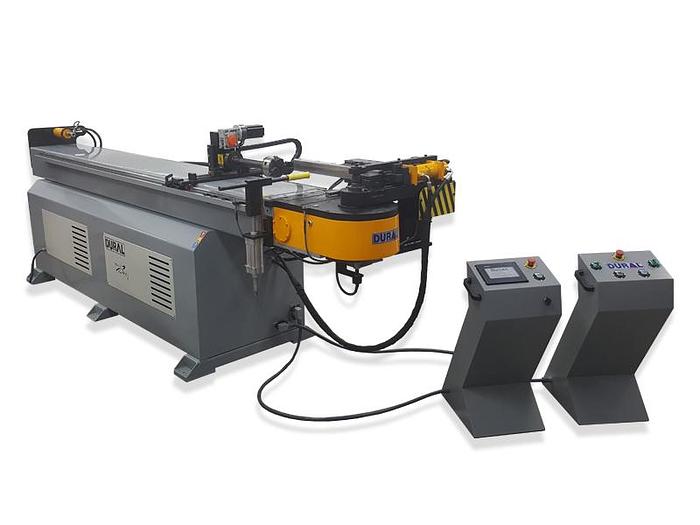

Dural Semi-Automatic Tube & Pipe Bending Machines
Great value machines. Designed and built as a low investment alternative to CNC to provide High Performance, Profitable Solutions.
Complete with a user-friendly touch screen two axes HMI Numerical Control mixed with mechanical stops. Come complete with the features required to manufacture quality, accurate and repeatable 3D tubular parts from this quality semi-automatic production machine,
Family of five machines capable of bending tube sizes:
- 32mm/od x 2mm/wt
- 51mm/od x 3mm/wt
- 60mm/od x 3mm/wt
- 76mm/od x 4mm/wt
- 90mm/od x 4mm/wt
Standard features include:
- Numerical control to adjust angle of bend in increments of 0.1°
- Plane of Bend selector (POB) adjustable in increments of 0.1°
- Distance between bends (DBB) adjustable via sequential mechanical stops along a graduation scale covering the length of the machine.
- Pressure die assist
- Mandrel extraction system
- Mandrel lubrication system
- Wiper die bracket
- Full two years parts and labour warranty
- Installation, commissioning and full operator training can be arranged
- A full specification and quotation up on request - Just let me know the the machine size that will best fit your project needs.
Specifications
Manufacturer | Dural |
Model | Semi-Automatic |
Condition | New |
