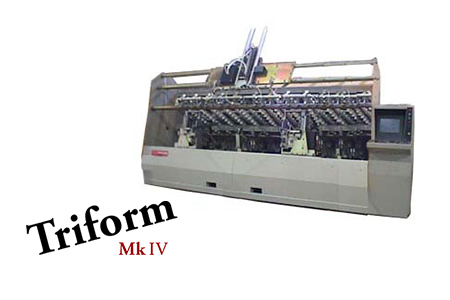

Twin Head Triform Mk 4

Twin Head Triform Mk 4

Contact us for price

Peterborough, United Kingdom

orCall 0044 1782 953096

Description

High Performance - Profitable Solutions

Triform Mk4 CNC Twinhead

Capable of wire bending up to: 8mm/od. The PAVE Triform CNC bending Technology System combines both the successful Variform and the Zukron technology.


Its multi-head forming facility coupled with a retracting centre clamp gives one of the most versatile forming capabilities available today. The system can be supplied in either a straight length or from coil version.

Features and Benefits:


  • Capacity up to 8mm wire diameter and cut lengths of up to 3.5 meters (3.75 meters from coil)
  • Repeatability on bend angle +/-0.1 deg' and +/- 0.1 mm on position
  • Multi-wire forming facility when bending in two dimensions and simple three dimensional capability
  • Fully automatic production
  • Maximum feeder machine load time of 3.0 seconds
  • Maximum tooling change time of 10 minutes (15 minutes with coil material)
  • Both bending heads are independently controllable with 10 speeds of bend, angle and position
  • Wire rotation unit in excess of 360 degree with 10 speed settings.
  • Fast, compact and reliable
  • Fully automatic user-friendly technology requires minimum operator training
  • Watch the video which shows the simplicity and user-friendly nature of the Pave control.


Unfair Advantage: Low-cost labour is no longer the value it once appeared to be. Staying close to your market, managing shorter, leaner deliveries gives you an ‘Unfair Advantage’ over your competitors whilst you remain flexible and agile in the face of ever-changing market conditions. With this quality New machine, you will take your production to a new high level. With minimal investment helping you to quickly transform your projects into reality using Pave CNC wire bending machines


See what is possible... We make it easy for you to take an Inspirational Masterclass in how to automate your tube bending department with the very latest CNC bending technology. See the on-line video demonstrations opposite.


A live or remote demonstration can be arranged and is recommended.

Don’t miss out, hurry, Act Now!

Specifications

ManufacturerPave
ModelTriform Mk 4
ConditionNew
