Twin Head Micro Mac Mk 7

Twin Head Micro Mac Mk 7

Contact us for price

Peterborough, United Kingdom

orCall 0044 1782 953096

Description

High Performance - Profitable Solutions

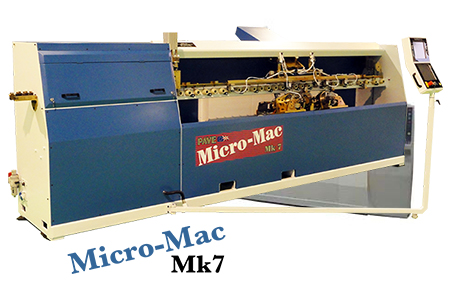

Micro Mac Mk7 Twinhead. True profile bending motion achieves greatly reduced power requirements working from coil. Capable of bending wire sizes: 2mm/od up to 6mm/od


Features and Benefits:

  • Fully programmable to produce three-dimensional shapes
  • Ten programmable bending speeds – up to 0.5 seconds for 180 degrees
  • Repeatability on bend angle +/- 0.05 degrees
  • Variable carriage speeds up to 80 meters per minute, with positional tolerance 0.01mm from datum
  • Clamp unit allows 360 degree rotation of wire, with 10 programmable speeds up to 0.02 seconds for 90 degrees
  • Simple touch screen programming, with three-dimensional graphics
  • Automatic loading of wires into bending machine from magazine
  • Straightening with Trueline Wire Straightener
  • Sequential forming component
  • Modem/Live video link
  • Tool change 10 minutes
  • Off-line programming
  • Fed from coil
  • Program change 30 seconds
  • Evenly stressed wire
  • Straightness within 0.1 over 1000mm
  • Controlled from main console
  • Length accuracy +/- 0.1
  • Delivers sequential lengths
  • Watch the video on this page which shows the simplicity and user-friendly nature of the Pave control.


Unfair Advantage: Low-cost labour is no longer the value it once appeared to be. Staying close to your market, managing shorter, leaner deliveries gives you an ‘Unfair Advantage’ over your competitors whilst you remain flexible and agile in the face of ever-changing market conditions.


See what is possible... We make it easy for you to take an Inspirational Masterclass in how to automate your wire bending department with the very latest CNC bending technology. See our on-line Masterclass video demonstrations.


Don’t miss out, hurry, Act Now! With this quality New machine, you will take your production to a new high level. With minimal investment helping you to quickly transform your projects into reality using CNC machines giving you an unfair advantage over your competitors to win new profitable business.


A live or remote demonstration can be arranged and is recommended.

Don’t miss out, hurry, Act Now!

Specifications

ManufacturerPave
ModelMicro Mac Mk 7
ConditionNew
CapacityUp to 6mm diameter and 2600mm long
