Twin Head Panther X3

Twin Head Panther X3

Contact us for price

Peterborough, United Kingdom

orCall 0044 1782 953096

Description

High Performance - Profitable solutions

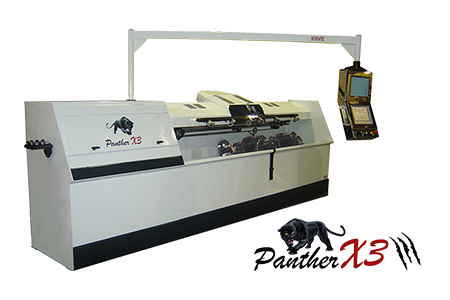

Panther Twinhead X3. A full CNC wire bending machine. Capable of bending wire sizes from: 1.5mm/od up to 7mm/od x up to 3000mm/long. Featuring the very latest Pave Touch Screen CNC wire bending technology


Feature and Benefits:

  • From straight parts or from coil this machine encapsulates more than 40 years-experience in both wire straightening and bending technology,
  • Combined with the all new software (animated icons, advanced graphical display techniques and CAD coordinate input) probably makes it the simplest programmable machine available anywhere.
  • 13 Programmable Axis.
  • Fully Programmable three dimensional shapes.
  • 10 programmable bending speeds, up to 0.05 seconds for 180 degrees.
  • Repeatability on bend angles +/- 0.05 degrees.
  • Variable carriage speeds up to 80 meters a minute, with positional tolerance of 0.01mm from datum.
  • Clamp unit allows 360 degrees rotation of wire with 10 programmable speeds up to 0.02 seconds for 90 degrees.
  • Simple touch-screen programming with three-dimensional graphics.
  • Animated icons.
  • CAD co-ordinate input to generate bend program automatically.
  • Twist free wire straightening system.
  • Off-line programming.
  • Sequential component forming.
  • Fed from coil.
  • Three bending shafts per bending head.
  • Up to 18 different radii when using hard tooling and unlimited differing radii when using repeat bending and generate bending.
  • Control console mounted on movable pendant and incorporates twin screens, one for programming and one for graphics.
  • Modem/Live Video Link
  • Watch the video which shows the simplicity and user-friendly nature of the Pave control.


Unfair Advantage: Low-cost labour is no longer the value it once appeared to be. Staying close to your market, managing shorter, leaner deliveries gives you an ‘Unfair Advantage’ over your competitors whilst you remain flexible and agile in the face of ever-changing market conditions. With this quality New machine, you will take your production to a new high level. With minimal investment helping you to quickly transform your projects into reality using Pave CNC wire bending machines



See what is possible... We make it easy for you to take an Inspirational Masterclass in how to automate your tube bending department with the very latest CNC bending technology. See the on-line video demonstrations opposite.


A live or remote demonstration can be arranged and is recommended.

Don’t miss out, hurry, Act Now!

Specifications

ManufacturerPave
ModelPanther X3
ConditionNew
