Transfluid Large CNC mandrel tube / pipe bending machines

Transfluid Large CNC mandrel tube / pipe bending machines

Contact us for price

Schmallenberg, Germany

orCall 0044 1782 953096

Description

High Performance - Profitable Solutions

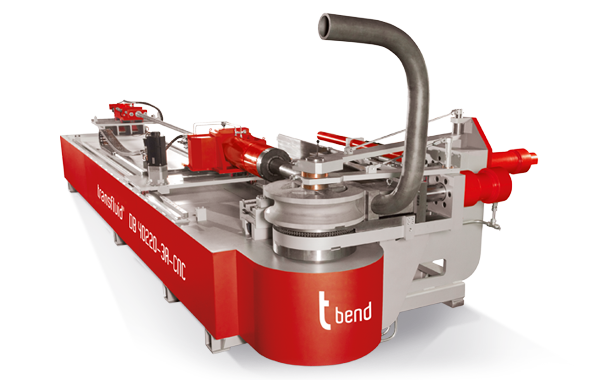

Transfluid – CNC mandrel pipe bending machines for large diameters. A family of ten large heavy duty tube / pipe bending machines. Capable of bending tube sizes from: 60mm/od up to: 325mm/od Available as a single or multi-stack enabling minimum to No clamp length between bends (compound clamping on a bend to pull a bend)


Featuring the leading - t Project Software - To Out-Pace All Others - Used by Professionals.


Service and support: Mouse link to learn more: Transfluid Service and Support (t-pbm.com)

Quality tight radius bending is possible of thin and thick-walled tubes made of all materials – even with radii of 1.5 times the pipe diameter (and smaller) Extremely short set-up times (sometimes shorter than 10 minutes) improve flexibility and increase cost-effectiveness. The machine enables short bending radii with no problem – yet lowest levels of wall thinning. Particularly long durability is a stand-out feature of the very sturdy machine construction. All tube bending machines are supplied with a powerful and fully-automatic CNC control.

Family of three types:

Hydraulic - Hybrid - All Electric


Bespoke Solutions - Built to meet your exact requirements, chose a standalone machine or Fully Automated Production Cell.


Unfair Advantage: Low-cost labour is no longer the value it once appeared to be. Staying close to your market, managing shorter, leaner deliveries gives you an ‘Unfair Advantage’ over your competitors whilst you remain flexible and agile in the face of ever-changing market conditions.


It’s the Way Forward - See what is possible...

Transfluid – World Leaders in standalone or Fully Automated Production Cells:-

Compound Bending – End Forming – Fully Automatic Handling. Optical Inspection / Measuring – Washing – Seam detection – Print Marking each part. Cutting Costs – Boosting Profits – Consistent quality – Accurate Tubular Parts

Space Saving – Small footprint – All Electric – Flatten ends – punch – auto-load – Bend – auto-off load and stack

Space Saving – Small Footprint – Cost Cutting – Profit Boosting

Specifications

ConditionNew
FeaturingCentre-line Boost – Powered Follower Slide – Controlled Mandrel Withdrawal – to name just a few.
