ADM Electra-Bend-150L-HD-HS-Mandrel Centre-line Boost CNC

ADM Electra-Bend-150L-HD-HS-Mandrel Centre-line Boost CNC

Contact us for price

orCall 0044 1782 953096

Description

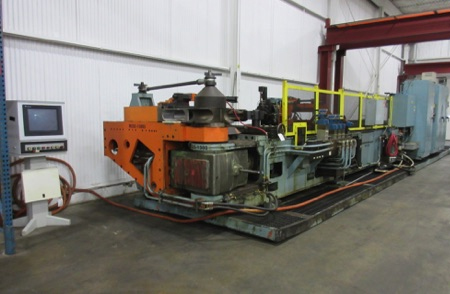

Nearly New ADM-EB150L-CNC Hybrid A Heavy Duty / High Speed CENTRELINE-BOOST CNC Mandrel Tube Bending Machine Built for General Motors USA to bend Corvette Chassis.

Bending mainly aluminium tubular parts so has had a very relaxed life bending always well within the machines capacity.

To minimise setup time and scrap material all critical axes are ‘Electric’ and controlled via the Phenix CNC Control. A very powerful (EB) Electra Bend High Speed Mandrel tube bending machine

Comes complete with:

  • Powered Pressure die assist
  • Direct acting pressure die – servo controlled
  • Hydraulic direct acting clamp – servo controlled
  • Hydraulic mandrel extraction
  • Automatic mandrel lubrication


All critical axes are ‘Electric’ and controlled via the Phenix CNC Control. The direct-acting  clamp, pressure die and pressure die-assist (follower) are fully closed-loop CNC axes and feature no mechanical screw-adjusters, hydraulic flow controls or manual hydraulic pressure adjusters. These features are normally associated with modern day more expensive ‘All Electric’ tube bending machines.

Following a tooling changeover, the Clamp and Pressure-Die are able to “Learn” their respective “closed” positions and will decelerate to these positions to help minimise wear and tear. Furthermore, these actuators are fully coordinated. The advancing Y-axis carriage is synchronised with the opening of the Clamp to help minimise cycle-time. The Pressure-Die and Clamp do not have to wait for completion of Y & B axis motion prior to closing.

The Pressure-Die-Assist (Follower) is synchronised with the C-axis bending arm, based on the bending die’s CLR. However, during the bending cycle, the actual velocity and force, exerted by the PDA, can be user-profiled. This feature provides total control of this critical tube-forming component.

The C-axis features a closed-loop AC Vector-Drive motor, directly coupled to a NORD helical-bevel gear-reducer. The Y-axis carriage positioning and Push-Assist features a closed-loop AC Vector-Drive, directly coupled to a Nord gear-reducer. Linear motion is via twin rack & pinions.

Excellent Condition – Available Immediately


With this quality pre-owned machine, you will take your production to a new high level. With minimal investment helping you to quickly transform your projects into reality using CNC machines from stock giving you an unfair advantage over your competitors to win new profitable business.


A live or remote demonstration can be arranged and is recommended.


Limited time offer: ‘All pre-owned used machines’ are by their very nature ‘One Off’s’ and once sold cannot be repeated - Don’t miss out, hurry, Act Now!

Specifications

ConditionUsed
An ideal machine for bending thin wallInconel – Titanium – Stainless steel tube x 1D/cl
C/wPOB ‘Y’ axis Centreline Boost
