VEX 453

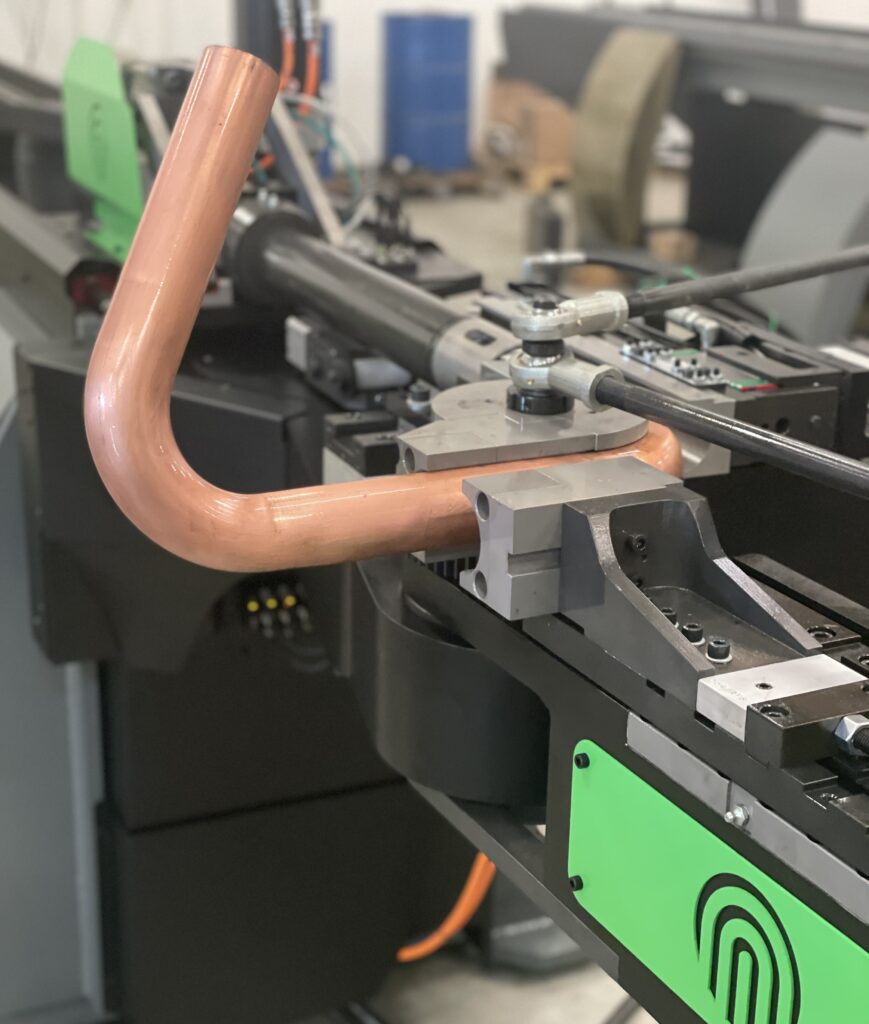

- Full electric 45mm/od mandrel tube bending machine
- Multiple stacks – 3 CNC axis fixed radius mandrel bending.
Optional extras: - auto load / off load systems
- Tooling
- Full UK parts and labour warranty, support and after sals back up
- “We look after our customers“
Technical Specification
| Maximum Tube Diameter | 45 |
| Number of Electric Servo Axis | 3 |
| Number of Tooling Stacks | Single |
| Machine Length | 5250 |
| Machine Width | 1200 |
| Machine Height | 1600 |
| Machine Weight | 2350 kg |
| Electrical Power Consumption | 15 Kw |
| Maximum Tube Length Over Mandrel | 4600 |
| Maximum Bend Centre Line Radius | 125 |
| Maximum Tube Bending Speed (°/sec) | 200 |
| Tube Feeding Speed (mm/sec) | 930 |
| Tube Rotation Speed (°/sec) | 560 |
| Bending Accuracy (degrees) | 0.05 |
To summaries:
* Deluxe CNC mandrel tube bending machine for the most demanding applications.
* Includes: UK installation, commissioning, and operator training
* Complete with on-going service, support and back-up.
A live or remote demonstration can be
arranged and is recommended
