In Stock

Flecte
Great Value
Best in Class family of
CNC mandrel tube bending machines

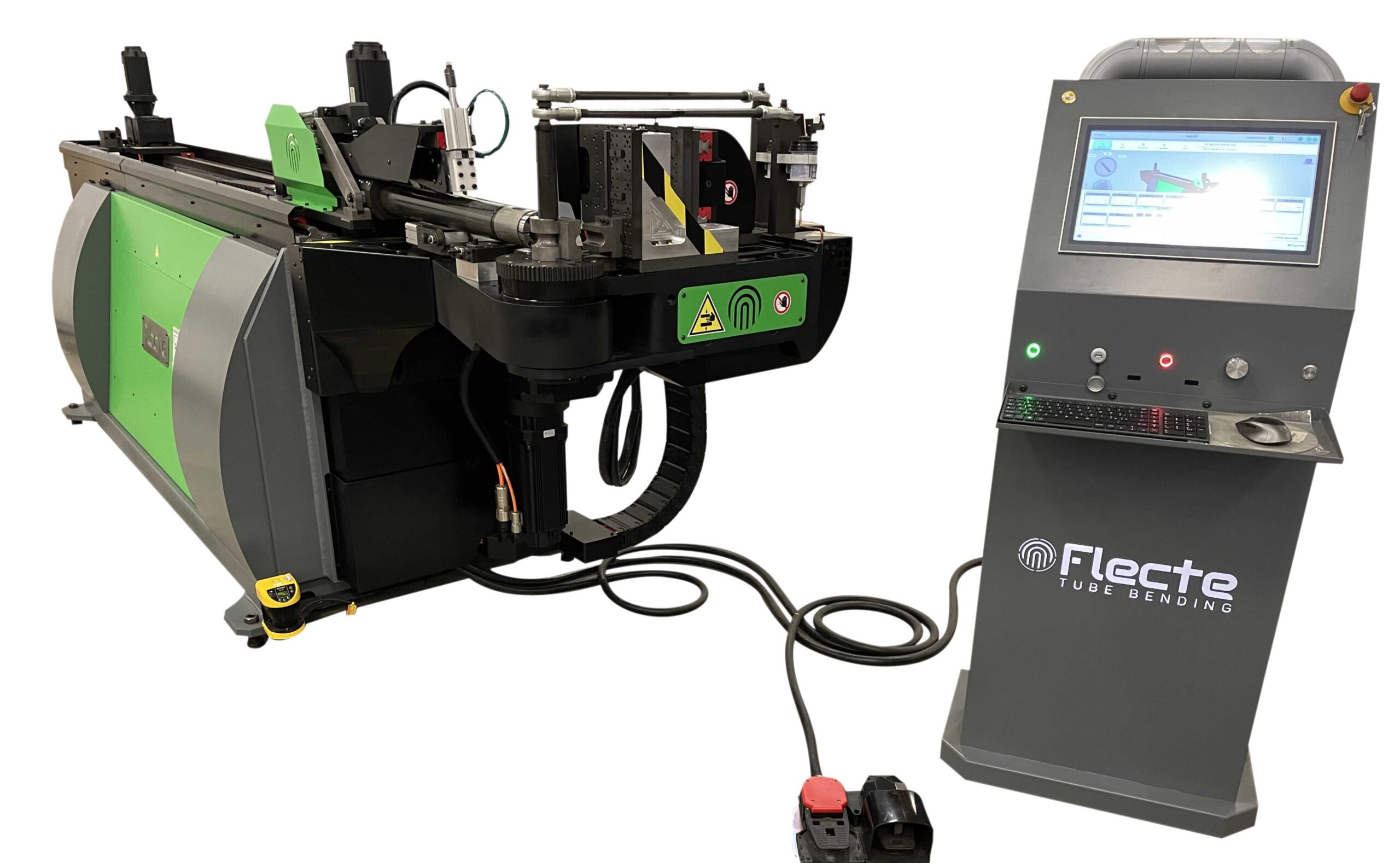

VEX 459

Full electric 45mm/od mandrel tube bending machine
Multiple stacks – 9 CNC axes
For a variety of tube profiles with fixed radius mandrel bending and capable of variable radius roll bending in the same bending process.
See full technical specification below
Optional extras include: auto load / off load systems – Tooling
Full UK parts and labour warranty, support and back up – “We look after our customers“

Technical Specification

Maximum Tube Diameter	45
Number of Electric Servo Axis	9
Number of Tooling Stacks	Multiple
Machine Length	5250
Machine Width	1200
Machine Height	1600
Machine Weight	2500 kg
Electrical Power Consumption	20 Kw
Maximum Tube Length Over Mandrel	4600
Maximum Bend Centre Line Radius	125
Maximum Tube Bending Speed (°/sec)	200
Tube Feeding Speed (mm/sec)	930
Tube Rotation Speed (°/sec)	560
Bending Accuracy (degrees)	0.05

To summaries:
* Deluxe series CNC mandrel tube bending machine for the most demanding applications.
* Includes: UK installation, commissioning, and operator training
* Complete with on-going service, support and back-up.

Got questions – Book a live or remote demonstration – or need assistance?

Please feel free to let us know. We’re a friendly bunch (after coffee) and here to:
Help you get it right – It’s what we do! – Quotation available up on request
