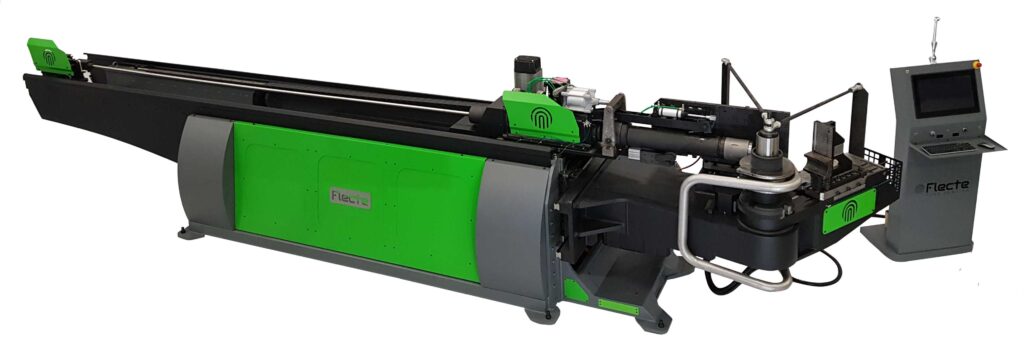

VEX 655
Hybrid 65mm/od mandrel tube bending machine
Capable of bending tube sizes up to: 65mm/od x 4mm/wt
Multiple stacks – 5 CNC axis
For a variety of tube profiles with fixed radius mandrel bending and capable of
variable radius roll bending in the same bending process.
See full technical specification below
Optional extras include: auto load / off load systems – Tooling
Full UK parts and labour warranty, support and back up
“We look after our customers“
Technical Specification
| Maximum Tube Diameter | 65 |
| Number of Electric Servo Axis | 5 |
| Number of Tooling Stacks | Multiple |
| Machine Length | 7200 |
| Machine Width | 1360 |
| Machine Height | 1600 |
| Machine Weight | 5500 kg |
| Electrical Power Consumption | 30 Kw |
| Maximum Tube Length Over Mandrel | 6300 |
| Maximum Bend Centre Line Radius | 200 |
| Maximum Tube Bending Speed (°/sec) | 95 |
| Tube Feeding Speed (mm/sec) | 930 |
| Tube Rotation Speed (°/sec) | 400 |
| Bending Accuracy (degrees) | 0.05 |
To summaries:
* Deluxe CNC mandrel tube bending machine for the most demanding applications.
* Includes: UK installation, commissioning, and operator training
* Complete with on-going service, support and back-up.
A live or remote demonstration can be
arranged and is recommended
