Family of three
Mobile mandrel tube bending workstations
Compact – Powerful – Convenient
Capable of 1.5D/clr, suitable for maintenance and site-work.
Pre-set drop-in tooling for quick tool change Touch panel for setting, recalling and editing bend programmes.
Manual or semi-automatic operation via an SPS control

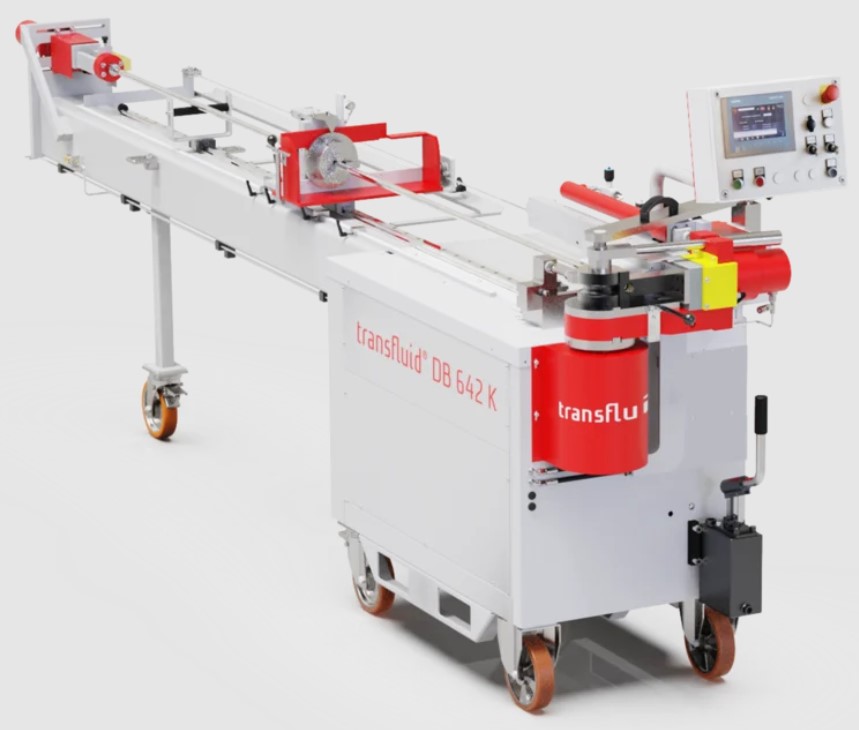

DB642K
Mobile mandrel
tube bending workstations
Capable of bending tube sizes: 6–42mm/od
Max. capacity 42 x 5 mm (mild steel)
42 x 3 mm (stainless steel)
25 x 3,2 mm (Square section)
Max. Radii 105 mm
Usable length 1500 mm 3048 mm (standard)
4572 mm 6096 mm
Speed of bending axis 13 °/sec.
Length 4380 mm
Width 900 mm
Height 1550 mm
Weight 900 kg

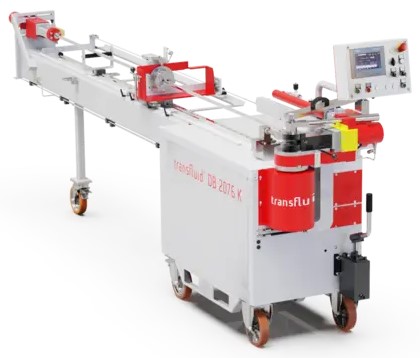

DB2076K
Mobile mandrel
tube bending workstations
Capable of bending tube sizes: 6–76.1mm/od
Max. capacity 76,1 x 3 mm (mild steel)
76,1 x 2 mm (stainless steel)
50 x 5 mm (Square section)
Max. Radii 150 mm
Usable length 1500 mm
3048 mm (standard)
4572 mm or 6096 mm
Length 4450 mm
Width 900 mm
Height 1580 mm
Weight 1250 kg

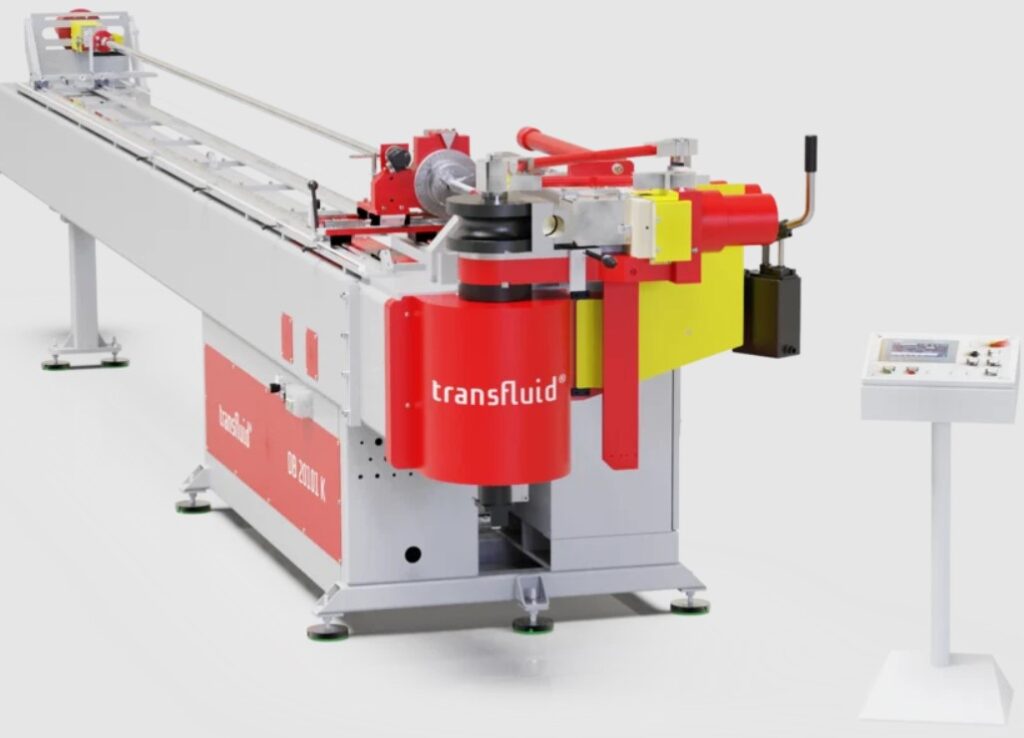

DB20101K
Mobile mandrel
tube bending workstations
Capable of bending tube sizes: 6–101.6mm/od
Max. capacity 101,6 x 3,5 mm (mild steel)
101,6 x 2 mm (stainless steel)
80 x 4 mm (Square section)
Max. Radii 300 mm
Usable length 3048 mm (standard)
4572 mm or 6096 mm
Speed of bending axis 11,5 °/sec.
Length 5000 mm
Width 1400 mm
Height 1500 mm
Weight 3700 kg
