Transfluid

Mobile tube processing workstations
Capable of bending tube sizes up to:
42mm/od

Options available include:
* Internal and external deburring
* Carriage for cutting ring pre-assembly and
flaring for tube sizes 1/4″ up to 1.5/8″od
For pre-assembling single and multi bite rings
according to DIN 2353

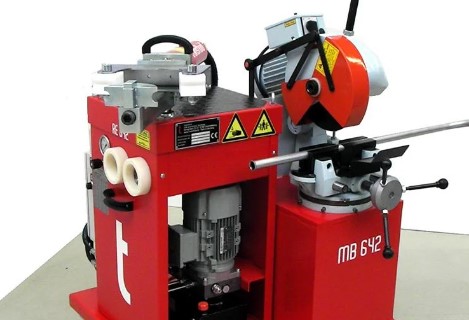

*Cross cut attachment for right angle cuts

ALTERNATIVE DRIVE
Optionally a pneumatically driven variant for the
offshore sector.

t work – Mobile bending machines Transportable,
versatile and thoroughly tried and tested

Fast set-up
Simple operation, with preset bending angles
Robust and transportable
Special tool profiles to bend thin-wall tubes
Option to correct the bend angles

See what you can do!

Your benefits at a glance
Stable, flexible and economical.

^transfluid®

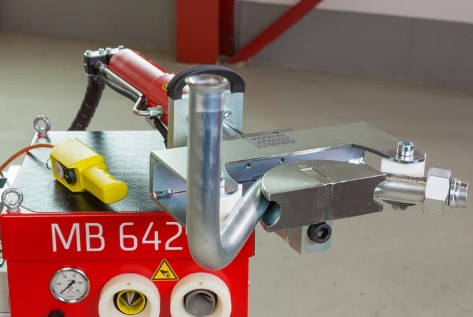

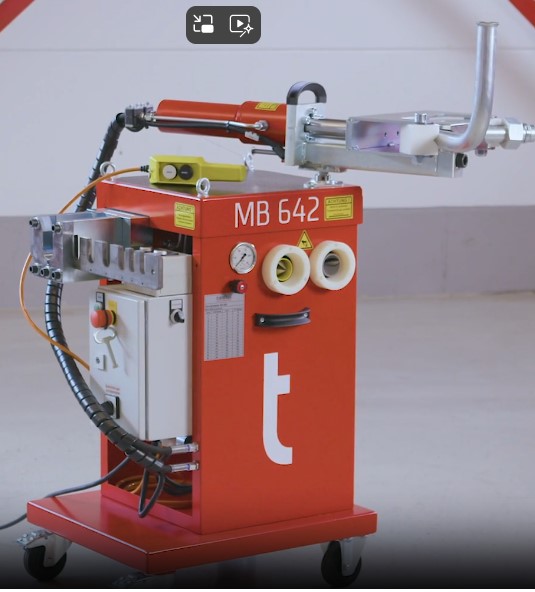

MOBILE BENDING MACHINES

The smart companion for many different sites: a great variety of machine sizes are available, from 1/4″ to 4 1/2″. This unmatched, tried and tested transfluid classic is a compelling option, thanks to its many benefits, its budget price – performance ratio and its unique quality.

Machine sizes – tube size

MB 642	1/4″ – 1 5/8″ Ø
MB 2060	1/4″ – 2 3/8″ Ø
MB 3080	1/4″ – 3 1/2″ Ø
MB 30115	1/4″ – 4 1/2″ Ø

ROTATABLE BENDING UNIT

for ergonomic working, reduction of tube swiveling range

Your optional benefits at a glance

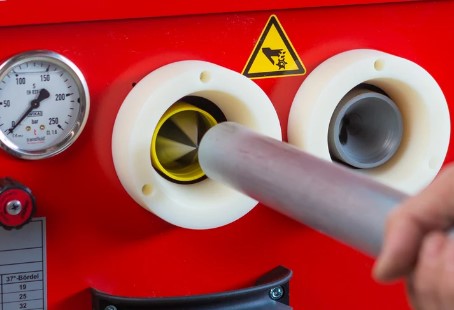

DE-BURRING MACHINE

The separation cut is made directly after the last bend. No further re-cutting is necessary.
Capacity:
For tubes from 1/4“ – 1 5/8“
Machine equipment-/basic accessories:
* De-burring tools
* De-burring heads easily sharpened and adjusted
* Internal de-burring tool with 3 HSS edges
* External de-burring tool with 1 HSS edge
