Hydraulics Industry
BENDING AND FORMING TUBES FOR HIGHLY DYNAMIC STRESS
The increasingly strong digital connection for pipe machining processes is a significant driver of technical progress in the industry. Especially for
hydraulics, this calls for solutions that ensure safe and, depending on the requirements, automated processes in tube machining.
To ensure that pipes are clean, robust and durable over the long term, you need to be familiar with the wide range of hydraulic connection
systems. We give you the security for the products and their economical production
Dural
Industry Leading Starter
Economy High Performance
CNC mandrel tube bending machines

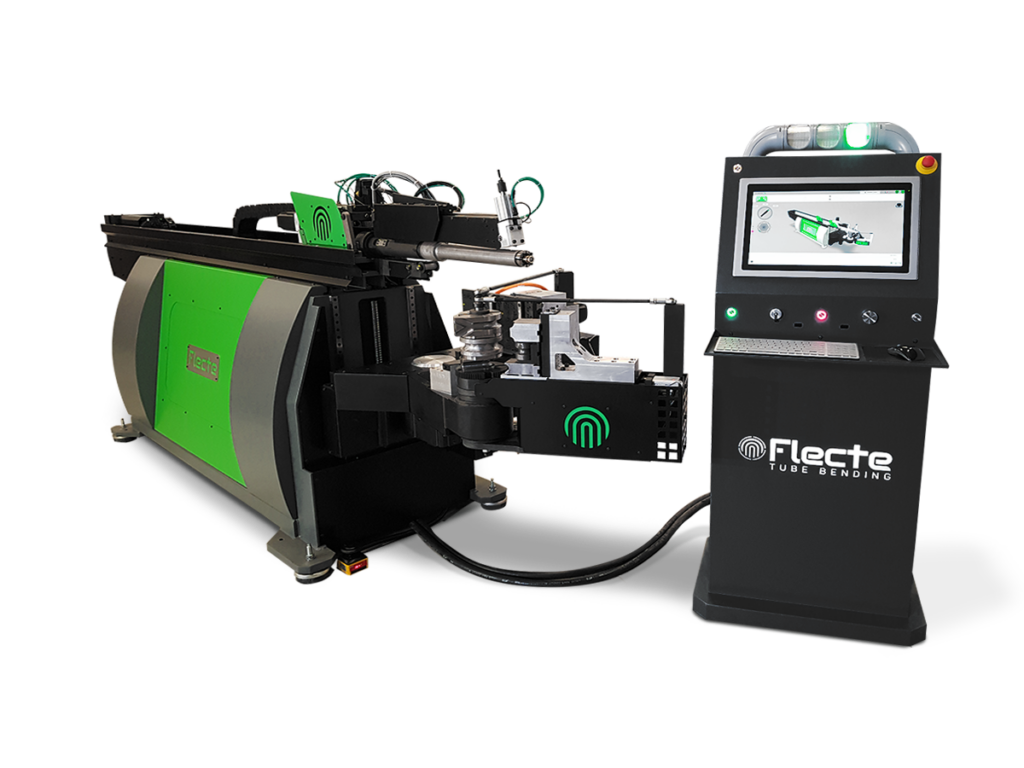

Flecte
Industry leaders
Deluxe High Performance
CNC mandrel tube bending machines

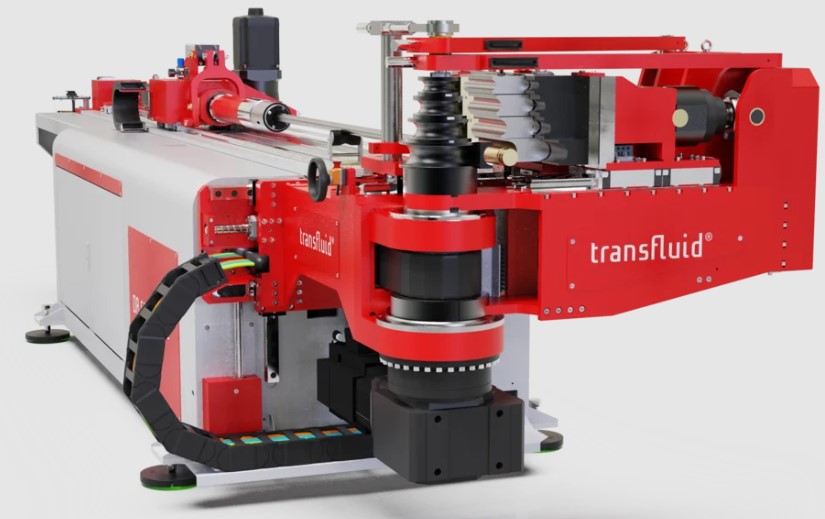

Transfluid
Super Deluxe
High Performance
portfolio of machines and solutions
Powerful pipe shaping and bending technology
create safe mobile hydraulics
The extreme demands imposed on construction vehicles require them to have precision-fit pipework and reliable joints and connections on their
hydraulic drives, which tackle of lot of very heavy work. Specifically designed to meet these challenges, we have developed our compact CNC
tube bending machines. One example is our DB 642 R/L-CNC mandrel-bending machine that can even bend tubes with thick walls efficiently. With
our mobile Type UMR pipe-shaping machines we can produce highly complex shaping geometries and secure connection systems in the
hydraulic area, such as 37° or 90° flanges for flat-sealing O-ring connections (e.g. ORFS).
‘Smart’ solution for flexible production processes
One-off or volume production: the fully-automatic mandrel-bending machine DB 642 R/L-CNC (for pipe diameters of 6 – 42 mm) can be linked up
online to all CAD systems. The operator uses a freely programmable CNC touch-sensitive panel. The machine control unit processes 3D data directly and in virtually all formats.
Extremely short retooling times deliver fast and flexible production processes. Another bonus: these machines are capable of processing pipes,
already shaped or ‘formed’ on both sides, as well as pipes on to which SAE collars have been welded, prior to the bending procedure.
Production cell for hydraulic lines
Flexible production concepts, from single pieces to batch sizes, and manufacturing of the connections can be easily realised with the Transfluid
machines. For larger-scale production, automated machines are the preferred choice. These machines are computer-controlled and can handle
a wide range of tube sizes and materials. They can also perform multiple operations, including cutting, bending, and end-forming. Automated
machines provide precise and repeatable results, making them ideal for high-volume production.

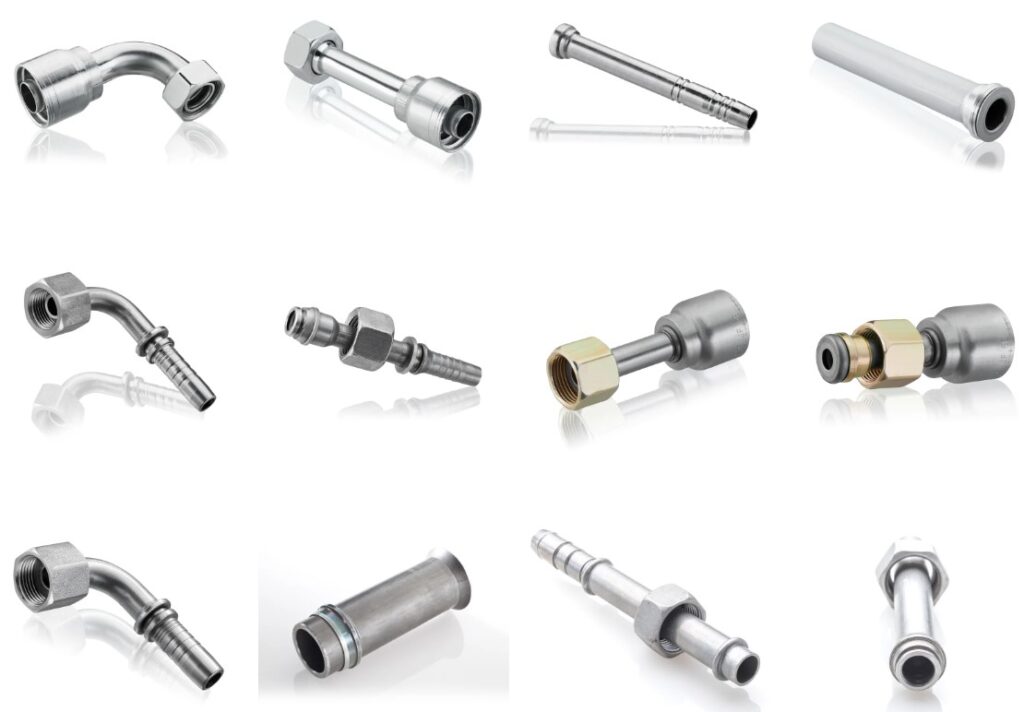

Secure connections with optimum sealing surfaces

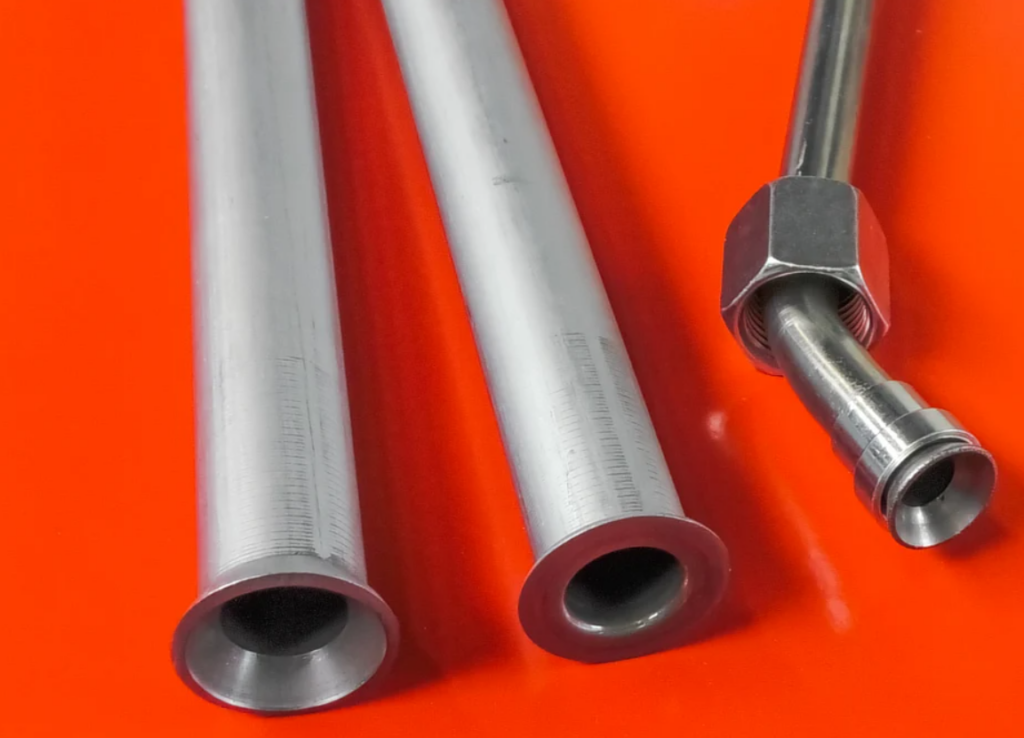

To produce reliable connections in the hydraulic area, it is often necessary – not to mention most important – to produce 37°- and 90° flanges with short clamping lengths.
To accomplish this, our mobile Type UMR shaping/forming machines can produce flanges of up to 90° in just one operation, and with optimum sealing surfaces.
From stand alone and fully automatic production cells to
low-cost mobile site workstations
Versatile, efficient and mobile
With its simple and effective technology, our MB 642 mobile bending machine offers some great ways of bending pipework on the equipment or vehicle. This same system can be used to route hydraulic pipework efficiently and directly out on site.
Our mobile bending machine can also perform various other services. For example, it has a saw, an internal and external deburring unit, an assembly fixture for all standard connection systems (die rings and flange screw connections) as well as metal-cutting circular saws.
