Exhaust Systems Tube Bending and Forming
Whether you’re looking for a single production machine or a fully automatic production cell we have what you’re looking for
Family of six CNC Dural machines,
capable of bending tube sizes:
32mm/od x 2mm/wt
38mm/od x 2mm/wt
(Dural CNC38-6A-3S in stock and available for immediate deliver
51mm/od x 3mm/wt
60mm/od x 3mm/wt
76mm/od x 4mm/wt
90mm/od x 4mm/wt
Family of seven Electe Deluxe CNC mandrel tube bending machines. Capable of bending tube sizes from:
6mm/od up to 90mm/od
Family of nine

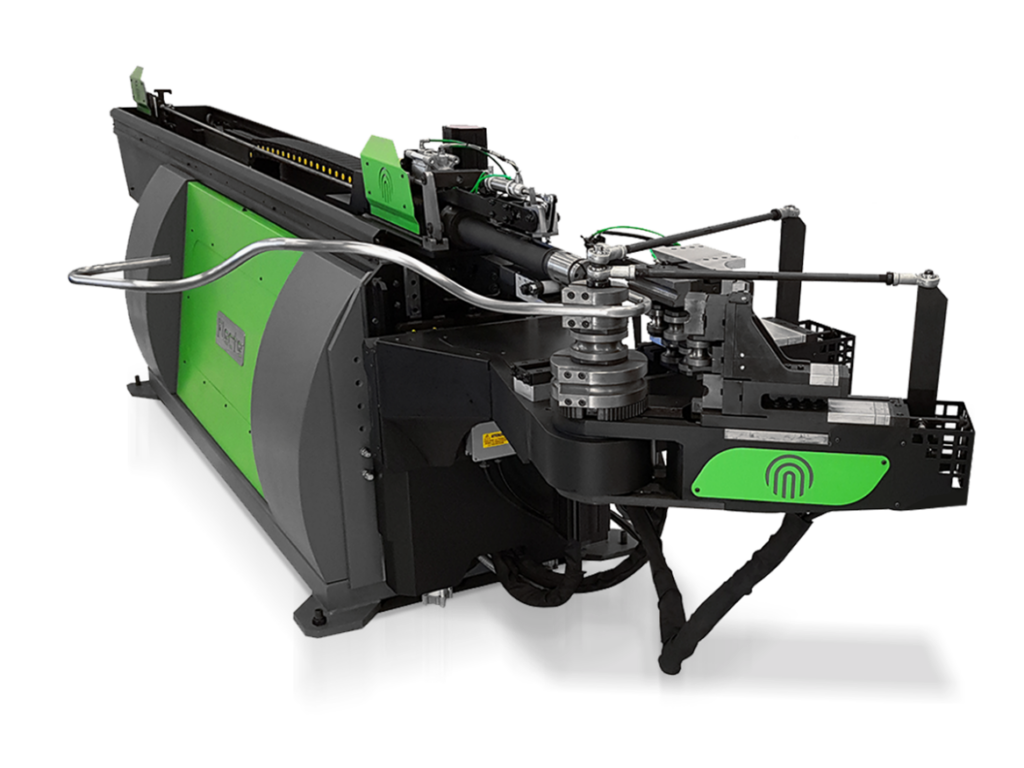

Full electric CNC-CV
mandrel tube bending machines
Complete with all the features you want
Capable of bending tube sizes:
22mm/od – 30mm/od – 42mm/od
50mm/od – 60mm/od – 80mm/od
100mm/od – 130mm/od – 150mm/od
Bending – End Forming – Laser Cutting
Bar Coding – Handling
Loading / off-loading
and much more
Stand alone or part of a fully automatic production cell
We have the full package

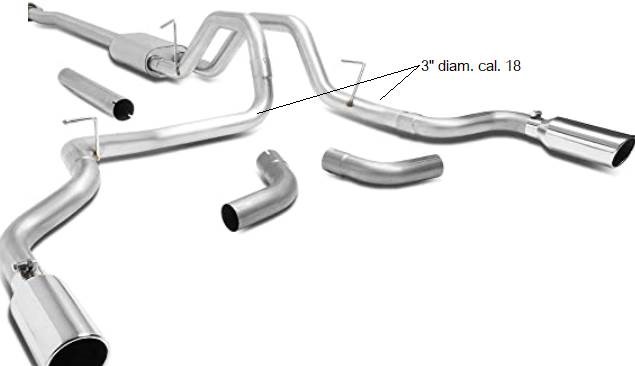

Specialised Exhaust Systems
An ideal machines for bending bespoke, small batch mild or stainless steel tube sizes
from 6mm/od up to: 76.1mm/od x 4mm/wt x 2D.clr
Dural
Family of five
Semi-automatic mandrel tube bending machines
Complete with:
2 x axis NC Numerical Control
Plane of bend facility
Powered follower slide
Controlled mandrel withdrawal

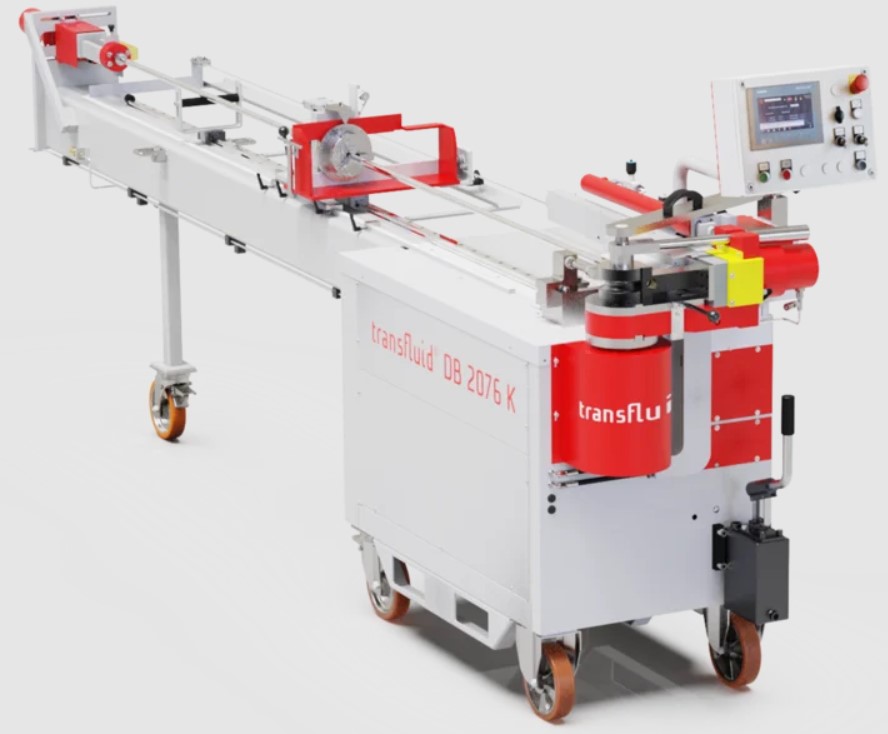

DB2076K
Mobile mandrel
tube bending workstations
Capable of bending tube sizes: 6–76.1mm/od
Max. capacity 76,1 x 3 mm (mild steel)
76,1 x 2 mm (stainless steel)
50 x 5 mm (Square section)
Max. RaDB2076Kdii 150 mm
Usable length 1500 mm
3048 mm (standard)
4572 mm or 6096 mm
Length 4450 mm
Width 900 mm
Height 1580 mm
Weight 1250 kg
DB2076K t bend – Compact, powerful and mobile Mandrel bending machines
- An ideal machine for the manufacturing of bespoke stainless steel tubular parts.
- Manual or semi automatic operation (with SPS control)
- Space saving.
- Mobile, wheeled machine suitable for maintenance and site pipework
- Drop-on, quick-change tooling – no adjustments necessary
- Fully hydraulic
- Can be controlled easily with a touch panel
Bending exhaust hangers using heavy gauge tube or up to 12mm solid rod
Need a stand alone single station – two station – three station tube end former?
to: Expand – Reduce – Slot
Transfluid EX3076
Exhaust End Forming
Single station – Two station – Three station
Exhaust three station end forming machine
Expand – Reduce – Slot
tube sizes from:
30mm/od up to 76mm/od
Come direct
There are a load of benefits to unpack
We offer complete consultation and step by step advice to accompany
your project from planning through to commissioning
To get started, we invite you to reach out to me.
I’ll be your personal guide throughout your
onboarding enquiry with us.
John Owen
Please direct dial, text or
WhatsApp me:
DD UK 07776 213919
International DD: 0044 7776 213919
Or, Use the form to join the conversation
